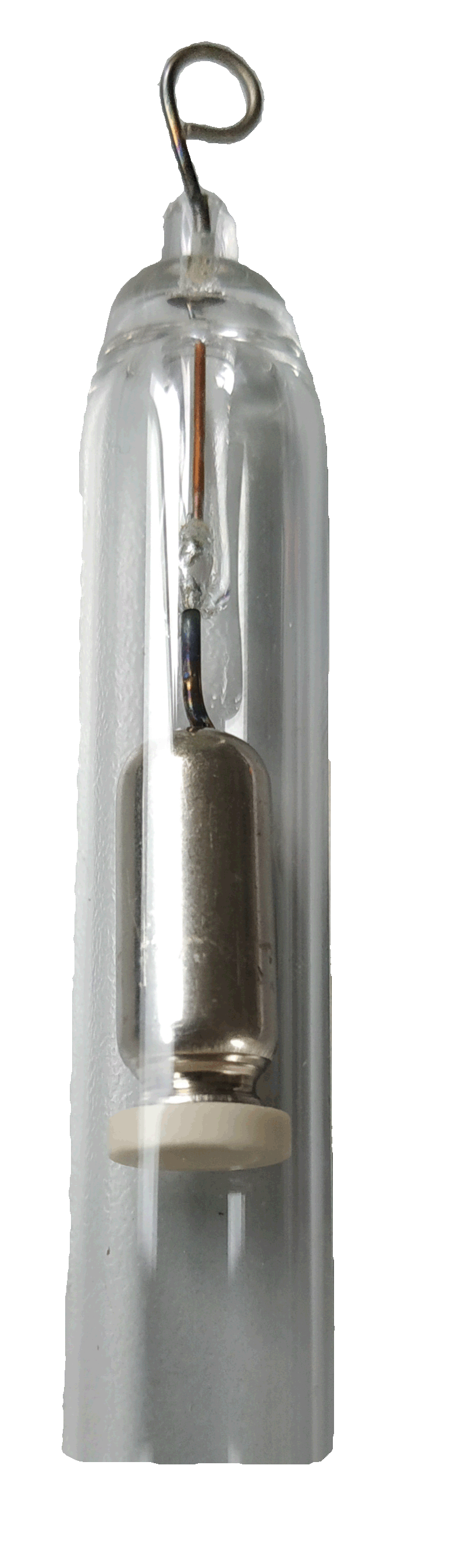

Electrodes MAESTRO Pyrex "a queque de cochon"

Evacuate unit to be bombarded to 0.1 mbar. Add 2 to 4 mbar of air and maintain a pressure of 2 to 4 mbar throughout bombarding process.
Operating current of the bombarder should not exceed 10 times the electrode rated operating current.
Do not reduce the pressure below 1 mbar during the bombarding process.
Stop when electrode shells are glowing cherry red over the entire surfaceand glass temperature is at 220°C.

​

​

​

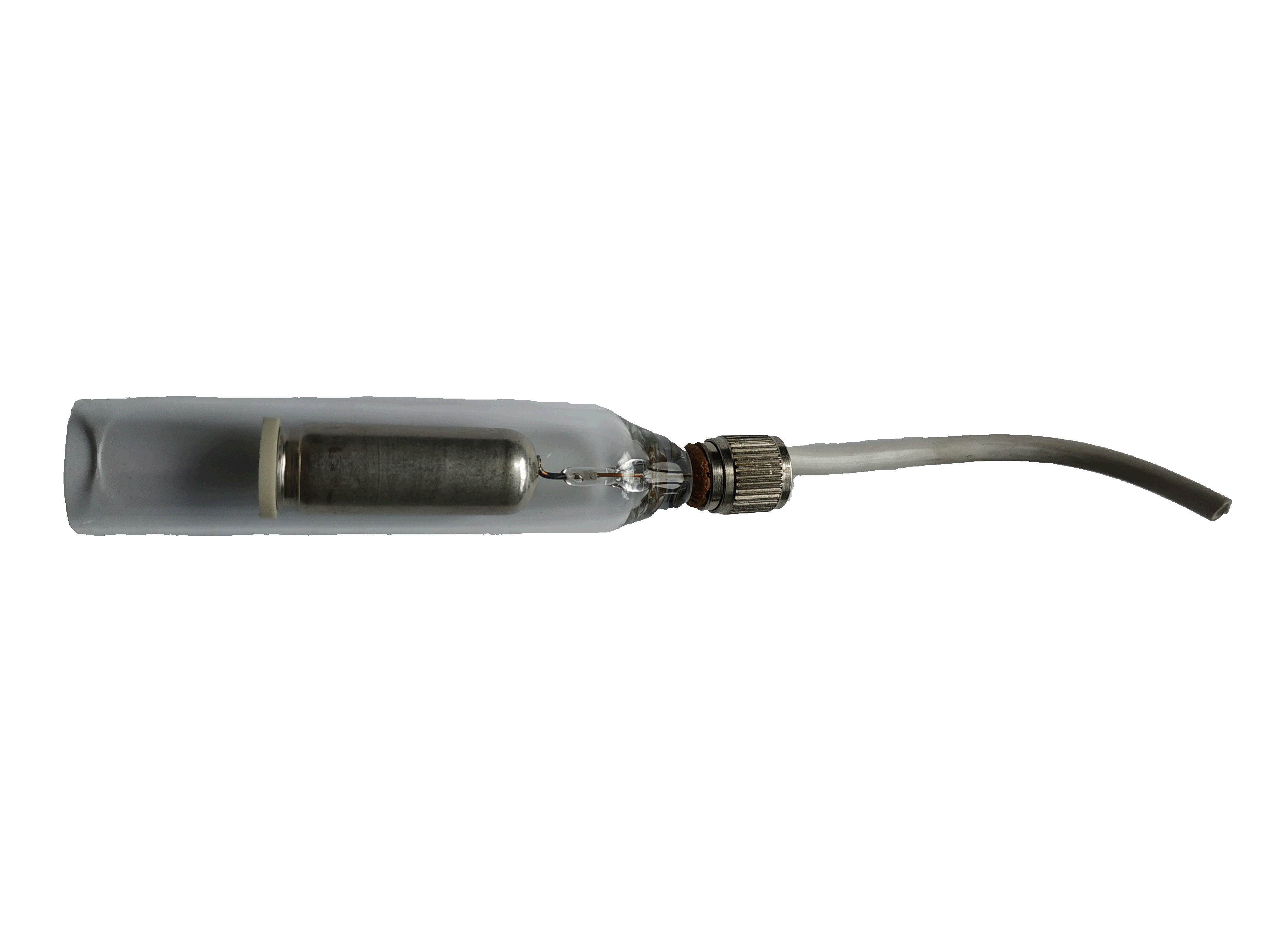

Electrodes MAESTRO Pyrex "a connexionne mechanique"

Screw Connector Pyrex.gif

Screw Connectors

Fast and easy solution

EPAC25T11

​

EPAC25T13

​

EPAC50T

​

EPAC100T

25 mA

​

25 mA

​

50 mA

​

125 mA

diam 10,5 mm

​

diam 13,5 mm

​

diam 15,5 mm

​

diam 18,5 mm

EPA25T11

​

EPA25T13

​

EPA50T

​

EPA100T

25 mA

​

25 mA

​

50 mA

​

125 mA

diam 10,5 mm

​

diam 13,5 mm

​

diam 15,5 mm

​

diam 18,5 mm

pyrex maestro.gif
